High Strength HDPE Film Anti Skid Cross Laminated Film

Product Categories
Upass Material Technology (Shanghai) Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

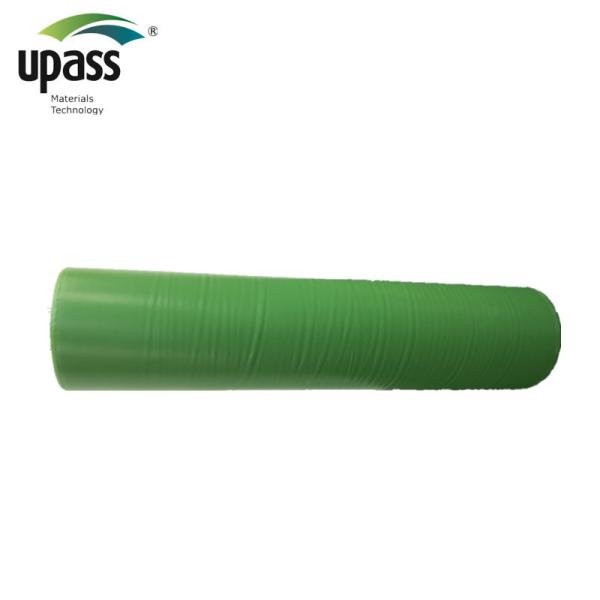

High Strength HDPE Film Anti Skid Cross Laminated Film

  • 1
  • 2
  • 3

Brand Name : Upass

Model Number : High Strength Film

Certification : CE, ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 200,000㎡~300,000㎡

Delivery Time : 15days

Packaging Details : Bubble Wrap & Wooden Pallet

Product Name : Anti-skid High Strength HDPE Film Antiskid Cross Laminated Film

Material : HDPE

Production Process : Lamination

Performance : Anti-slip, Anti-skid, Antiskid

Thickness : 0.12-0.26

Width : 900-1150mm

Color : Black, Grey, Blue, Green, etc.

Application : Underlayment, Waterproofing membrane and tapes

Printing : Can be customizable

Sample : Available

Contact Now

    Anti-skid High Strength HDPE Film Antiskid Cross Laminated Film



Anti-skid High Strength HDPE Film Description:



It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated.



It has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.



The surface special handling, rough surface, not smooth, make it anti-slip function. Mainly application for self-adhesive membranes, tapes and underlayment for pitched-roof.




Anti-SKID High Strength HDPE Film Parameter:



NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 180
    Elongation at break/% ≥ 180




Anti-slip High Strength HDPE Film Advantages:

High Strength HDPE Film Anti Skid Cross Laminated Film

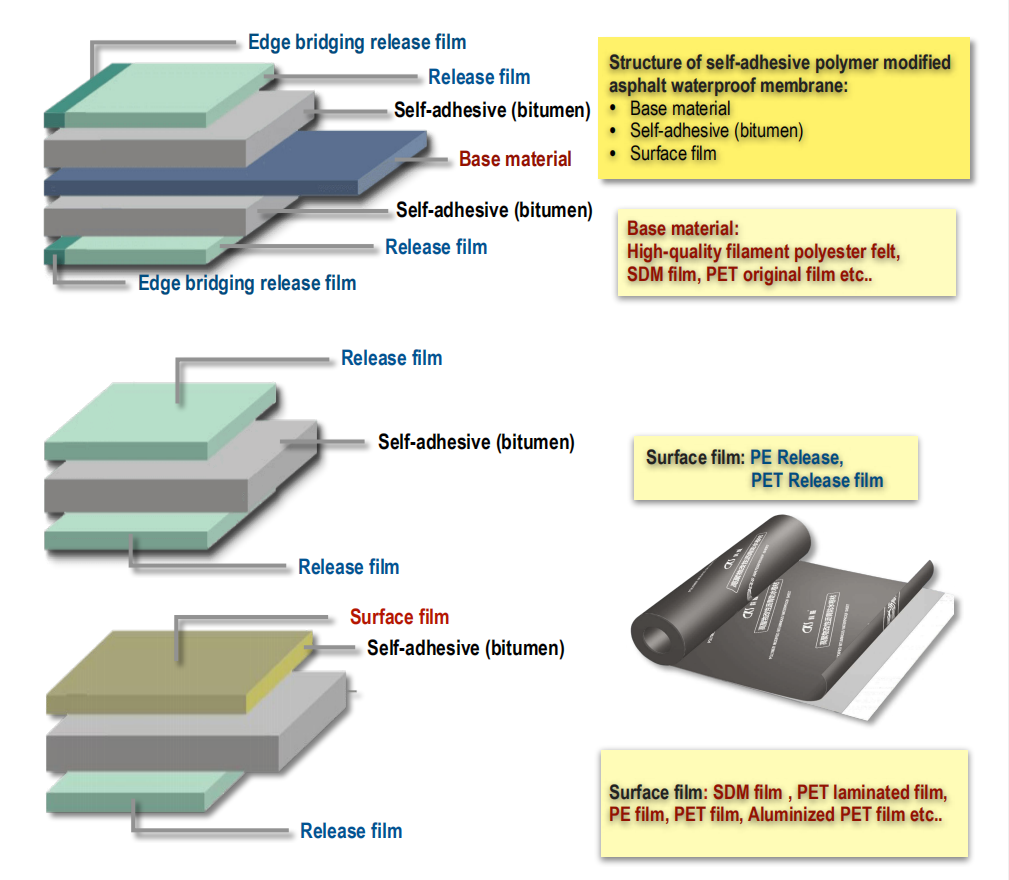

Structure of bitumen membranes:

High Strength HDPE Film Anti Skid Cross Laminated Film
