Dimensional 0.26mm RoHS 260um Cross Laminated Film

Brand Name : Upass

Model Number : Cross Laminated Film

Certification : CE, ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 200,000㎡~300,000㎡

Delivery Time : 15days

Packaging Details : Bubble Wrap & Wooden Pallet

Product Name : HDPE Cross Laminated Film

Material : HDPE

Production Process : Cross Laminated

Performance : Thermal Dimensional Stability

Thickness : 0.09-0.26

Width : 100-1250mm

Color : Black, Grey, Blue, Green, etc.

Application : Underlayment, Waterproofing membrane

Printing : Can be customizable

Sample : Available

Contact Now

                              HDPE Cross Laminated Film

Description:



It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
Our proprietary manufacturing process is composed of 3 steps: HDPE Film Extrusion, Spiral Cutting, and Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine can laminated machine to ensure the highest quality film for our customers.

Cross laminated film is puncture and weather resistant, has thermal dimensional stability and cold temperature resistance. Our cross-laminated process provides unbeaten mechanical performance and properties.



Advantages:


CROSS LAMINATED
Cross laminates two oriented polyethylene films with orientations crossed at about 90 degrees creating a tough, tear-resistant film.
ULTRAVIOLET RESISTANCE
UV stable grades are available for demanding outdoor exposure applications.
TEAR RESISTANCE
‍Cross laminated film’s unique cross lamination process produces film that resists tearing.
CHEMICAL RESISTANCE
Cross laminated film retains its toughness when exposed to many common chemicals.
PUNCTURE RESISTANCE
Cross laminated resists failures from blunt objects.
WEATHER RESISTANCE
Strong weather changes will not harm or destroy film.
TEAR PROPAGATION RESISTANCE
Most films fail easily from a nick or hole. Our cross laminated film technology prevents further failure from minor nicks and holes.
TEMPERATURE RESISTANCE
Cross laminated film’s unique physical properties are not significantly affected by changes in temperature.



Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination

Dimensional 0.26mm RoHS 260um Cross Laminated Film


Parameter:


NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 180
    Elongation at break/% ≥ 180





Product Tags:

260um Cross Laminated Film



0.26mm Cross Laminated Film



0.26mm polyethylene construction film


Buy cheap Dimensional 0.26mm RoHS 260um Cross Laminated Film product

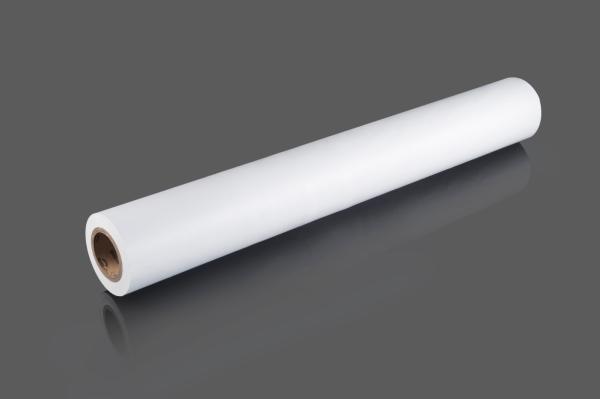

Dimensional 0.26mm RoHS 260um Cross Laminated Film Images
